Double-Tapped Breakers in Phoenix: What They Are and How to Fix Them

A double-tapped breaker means two wires are clamped under a breaker terminal that was built to hold one. In Phoenix it's one of the most common items we see on home inspection reports, on resale homes, rentals and houses that have had a few rounds of do-it-yourself additions. On its own it's usually a small repair. But it's also a clue about the panel, and it's worth knowing what it's telling you.

What a double-tapped breaker looks like

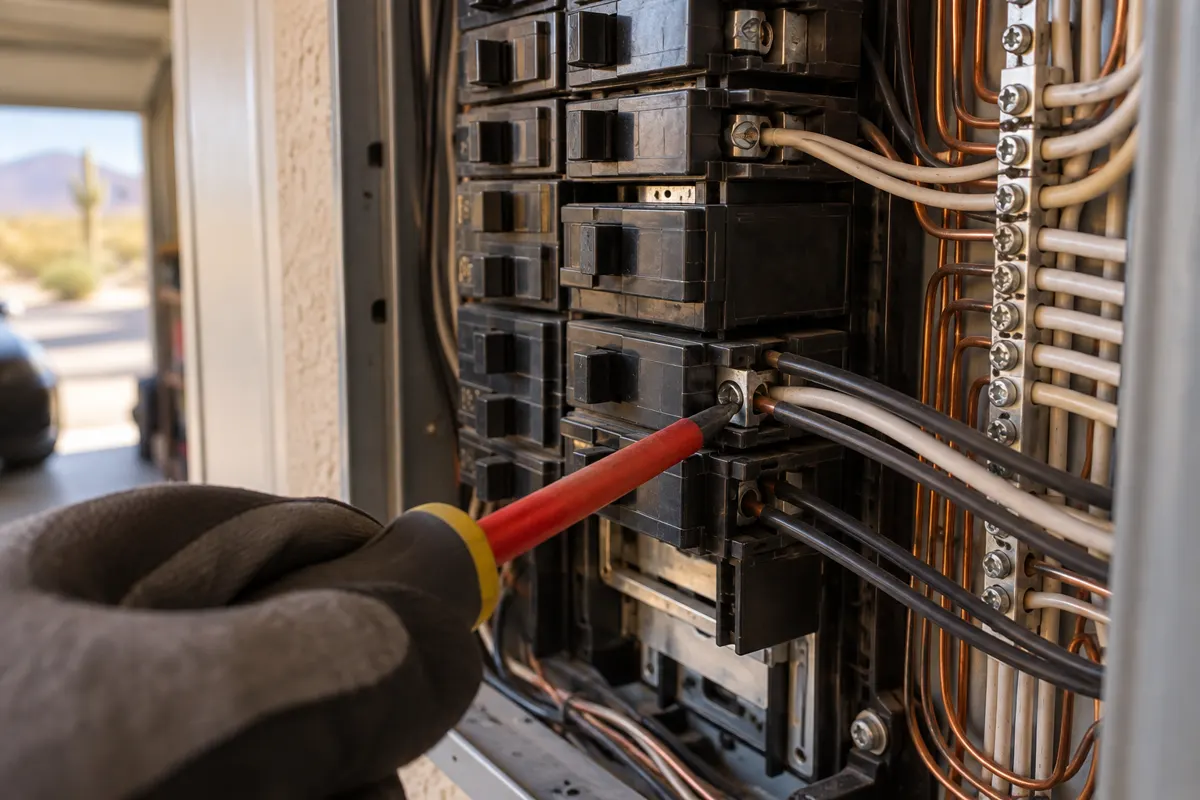

Take the cover off a panel (that's a job for an electrician, not a homeowner) and each breaker has a screw terminal where the circuit wire lands. A double tap is two wires under that one screw. You'll usually see it where someone added a circuit (an outdoor light, a garage outlet, a sprinkler controller or a ceiling fan) and the panel had no open slot, so the new wire got tucked under an existing breaker.

The same thing happens on the neutral bar, where the white wires land. Two neutrals sharing one hole in the bar is also called a double tap, and inspectors flag it too.

Why a double tap is a problem

Most breaker terminals are designed to clamp a single conductor. Put two wires under the screw, especially two different sizes, and the clamp can grip one tightly and the other loosely. A loose wire makes resistance, resistance makes heat, and heat loosens the connection a little more each time. Over time that can mean flickering, a breaker that trips for no clear reason, a melted wire jacket or scorch marks on the breaker.

Phoenix makes it worse. Many panels hang in garages or on west-facing exterior walls that get very hot through the summer. Connections heat up and cool down every day, and that cycling works loose connections looser. A double tap that was snug when it went in may not be snug after a few summers.

There's a load issue too. Two circuits on one breaker share that breaker's rating. If the two circuits together pull more than it allows, the breaker trips. If you're already chasing a breaker that keeps tripping, read our post on why breakers keep tripping.

How an electrician fixes a double-tapped breaker in Phoenix

The first step is a look at the whole panel, not just the one screw. We check the breaker listing, wire sizes, the label inside the door, open spaces, signs of heat, and the panel brand and condition. Then the fix is one of the four options above.

• Pigtail. The simplest fix when both wires belong on the same size breaker and the combined load is reasonable. It takes minutes, but it still has to be done with the power off and with a connector rated for the wire.
• A new breaker in an open space. If there's room, each circuit gets its own breaker. That also tends to stop nuisance trips caused by two circuits sharing one.
• Tandem breakers. Tandems can free up a slot, but the panel label decides whether they're allowed and where. Putting tandems in a panel that doesn't accept them just trades one inspection item for another.
• A subpanel or a new panel. When a panel is full of double taps, it's usually out of space, and sometimes out of capacity. Our post on subpanel vs panel upgrade explains how to tell which one you're short on.

Neutral double taps get a similar fix: each neutral moves to its own terminal on the bar, and if the bar is full, we add a listed bar kit or rethink the layout.

One double tap or a panel full of them?

One double tap on an otherwise clean panel is a quick repair. Several of them tell a different story. The house has outgrown its panel, and people have been squeezing in circuits for years. Look for the other warning signs at the same time: rust, scorch marks, a warm cover, breakers that won't stay on, or an obsolete brand. If those show up together, our panel upgrade page and our panel upgrade cost guide are the next things to read.

Double taps on a home inspection report

If you're buying or selling, a double tap is one of the easier items to resolve during escrow. Get an electrician to look before you negotiate a credit, because the fix ranges from a pigtail to a new panel, and the report alone won't tell you which. Ask for a short written note of what was found and what was done, so you can hand it to the other side. Our guide to electrical issues on Phoenix home inspections covers the other common findings.

Tempe homes

In Tempe, many neighborhoods were built in the 1960s and 1970s, and a lot of those homes have been rentals at some point. That combination, an original panel plus years of added circuits, is exactly where double taps pile up. Most of Tempe is SRP territory, so if the fix grows into a panel replacement, we plan the disconnect and reconnect with SRP from the start.

Don't fix it yourself

Fixing a double tap means working inside a live panel. The main lugs and the wires feeding them stay energized even with the main breaker off. Hire a licensed electrician, and check the license on the Arizona Registrar of Contractors search before anyone opens your panel.

Get a double tap checked

Text us a photo of the inspection report item, plus the label inside your panel door if it's easy to see. We'll tell you which fix fits and give you a free written estimate. B and D Electric LLC is licensed and bonded, Arizona ROC 361086, and our two owners have more than 40 years of combined experience. Call or text (480) 828-1181, or request an estimate.
